CE-Certified Recessed Downlights: Specs, Certifications and Selection Guide

As an Italian architectural lighting brand with integrated manufacturing in Dongguan, China, ALPHALUCE offers CE-certified recessed downlights across trimless, waterproof (IP65), high-CRI (Ra≥97) and adjustable lines. For project teams in the Research and Evaluation phase, the practical question is not simply which downlight looks best, but whether the fixture's specifications and certifications satisfy the application constraints. This guide maps ALPHALUCE's recessed downlight portfolio to those verification points and closes with a procurement checklist.

Why Recessed Downlight Selection Requires Verified Constraints

Recessed downlights are specified for projects where failure or mismatch has visible consequences. A fixture without the required IP rating can create a safety problem in a bathroom. A downlight without CE-LVD or CE-EMC evidence can create a market access problem in Europe. A low-CRI unit can alter how food, merchandise, artwork, or skin tones appear. Buyers therefore need precise answers to a small number of constraint questions.

• Are the fixtures certified for the destination market?
• What ingress protection (IP) class does the environment require?
• What CRI, CCT and beam-angle options are needed for the visual task?
• Does the installation accept trimless design, and what is the required cutout size?
• Can the luminaire be dimmed and controlled through the specified system?

Industry Context: Market Growth, Standards and Design Trends

The global recessed lighting market was valued at USD 78.32 billion in 2024, and is projected to reach USD 104.79 billion by 2034 at a CAGR of 11.05% (Straits Research). North America held the largest regional share in 2025, at 34.7%. The hospitality lighting market reached USD 14.2 billion in 2025, with LED lighting accounting for 58.4% (Dataintelo).

Standards influence specification. In the UK, BS 7671 requires a minimum of IP65 for recessed downlights in Zone 1, the area directly above a bath or shower. In North America, UL 1598 is the core luminaire standard, and IC marking applies when fixtures are intended for contact with insulation. For color-critical environments, IES guidance recommends Ra≥95 for museum-grade lighting. UGR<19 is commonly requested for office and commercial visual comfort.

Trimless recessed lighting is also one of the defining architectural design trends of the current cycle, because it removes the visible rim and creates a continuous ceiling plane.

Detailed Solution: ALPHALUCE Recessed Downlights by Specification

ALPHALUCE is a four-in-one architectural lighting company covering design, R&D, manufacturing and sales, with a 40,000 m² facility, 150 employees and annual output of 504,000 units. The portfolio includes recessed downlights, track lighting systems, step lights, wall washers, outdoor landscape fixtures and linear lighting solutions. Certified to CE, RoHS, LVD and EMC standards, and supported by ISO 9001:2015 quality management, ALPHALUCE exports about 80% of its output to Europe, the Middle East, North America and Australia.

Trimless Recessed Downlights

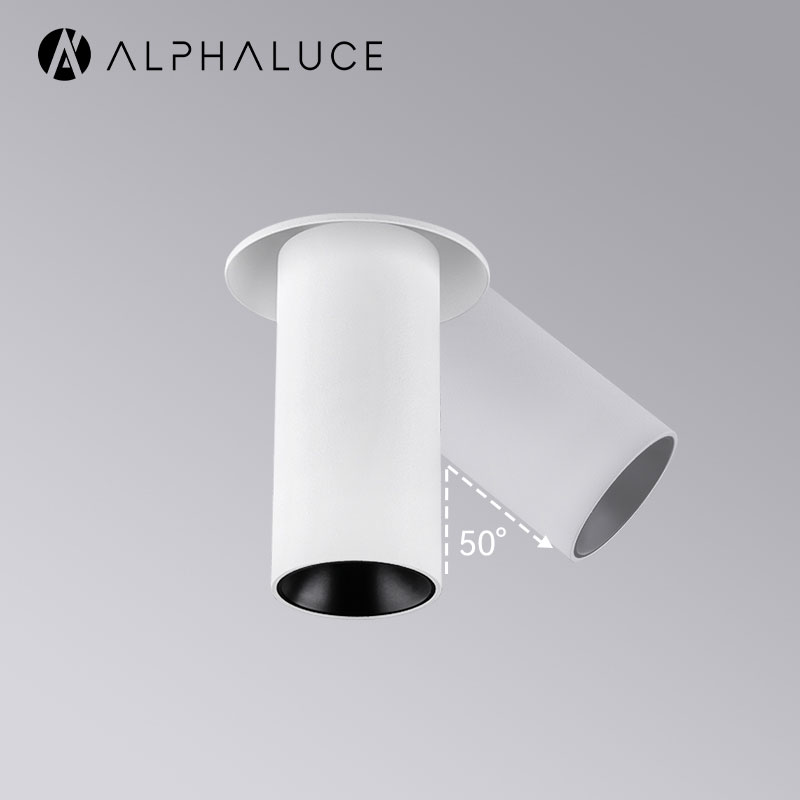

For architects who specify invisible ceiling lighting, ALPHALUCE offers a trimless installation line. The trimless downlight ALDL1609 is a 7W fixture producing 630lm at CRI≥92, with beam options of 15°, 24°, 36° and 55°, and a cutout of Ø76-80mm. For accent tasks, the trimless spotlight ALDL1598 provides 10W, 886lm, CRI≥92, and a 0-50° tilt with 355° rotation, with a Ø95mm cutout. Where moisture is present, the waterproof downlight ALDL1232 is a fixed, trimless 7W/508lm fixture rated IP65, with CRI≥92 and a Ø60mm cutout. This model family is offered in both with-trim and trimless versions.

Bathroom and Wet-Area Downlights

Bathroom and wet-area installations often impose both IP and corrosion constraints. ALPHALUCE's bathroom recessed light ALDL1238 is rated IP65, delivering 10W and 960lm at CRI≥92 with a cutout of ≥75mm, and is suitable for hospitality, residential, commercial and landscape projects. The small recessed light ALDL1409, rated 2W/70lm with IP65, fits a Ø22mm cutout, making it practical for compact and moisture-prone zones. Additional IP54 options include the bathroom spotlight ALDL1191 and waterproof spotlight ALDL1188, both with adjustable aiming.

High-CRI and Accent Downlights

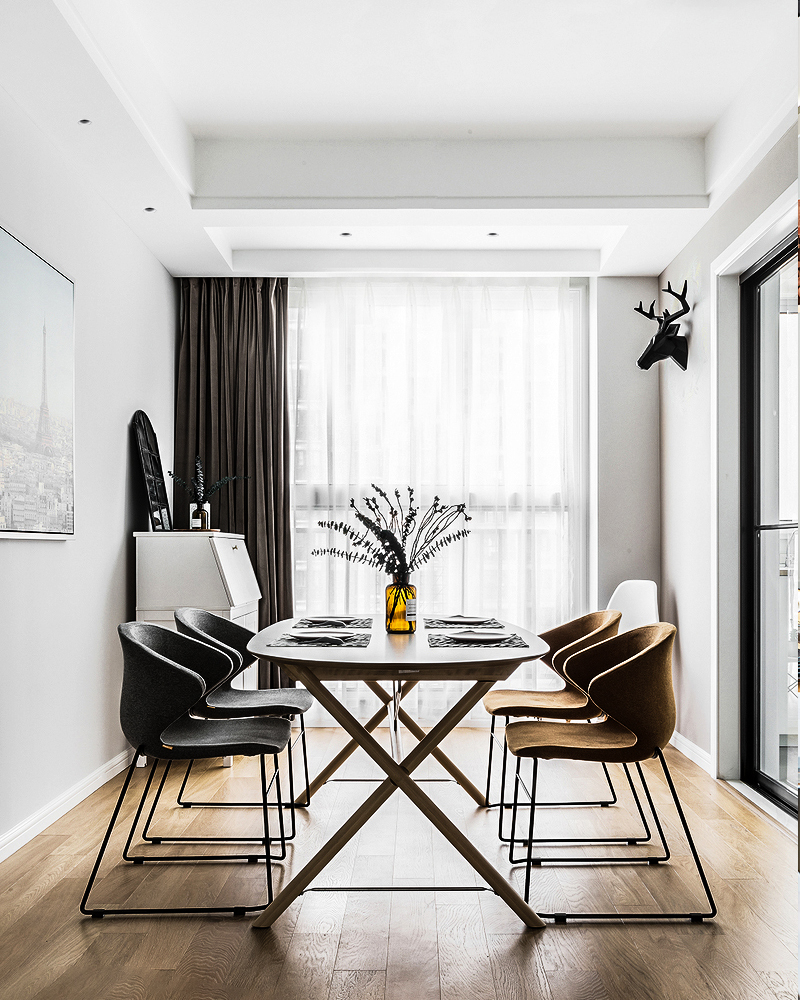

Museum, retail and hospitality applications depend on accurate color rendering. The recessed downlight ALDL1851 provides 630lm from 7W at CRI≥97, with beam angles of 15°, 24°, 36° and 55°, and a Ø55mm cutout. The trim downlight ALDL1552 delivers 450lm at 5W with CRI≥97 and a compact Ø35mm cutout, designed for museum and retail display settings. The recessed spotlight ALDL1590 reaches 585lm at 7W, CRI≥92, with 0-90° tilt and 355° rotation, providing precise aiming in gallery environments.

Adjustable and Directional Downlights

ALPHALUCE's recessed adjustable downlight ALDL1587 is a 5W fixture producing 450lm at CRI≥92 with a Ø68-70mm cutout and CCT options of 2700K, 3000K and 4000K. For higher output, the directional downlight ALDL1754 provides 18W and 1800lm, with a Ø90mm cutout. The narrow-trim dimmable spotlight ALDL1608 offers 7W, 482lm, CRI≥92, with 0-25° tilt and 350° rotation.

Square and Dimmable Downlights

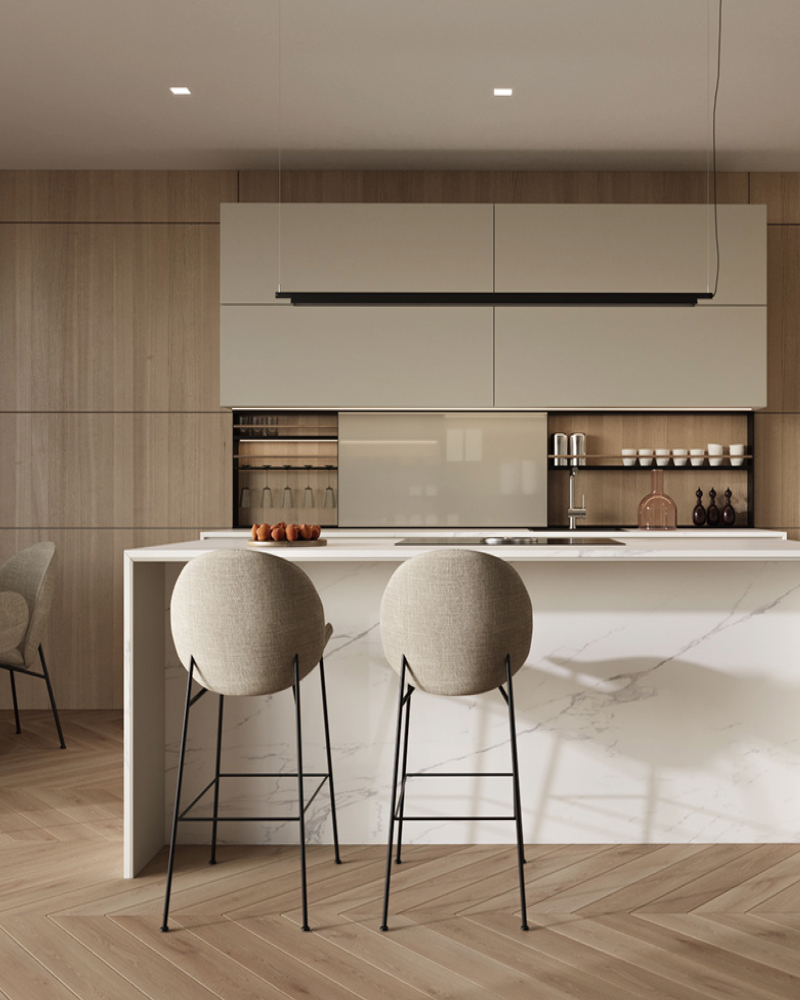

The square downlight ALDL1517 is offered in 7W/630lm and 10W/960lm versions, rated IP54, with a cutout of 80×80mm, and is aimed at residential, hospitality, commercial and retail display projects. For spaces managed with a lighting control system, the dimmable downlight ALDL1405 ranges from 15W to 30W and 1300lm to 3200lm, with optional DALI or 1-10V dimming, IP44 and CCT of 3000K, 3500K or 4000K.

Certification Evidence for European and Global Projects

Certification is a decision gate, not a marketing claim. For EU market access, ALPHALUCE recessed downlights are supported by CE-LVD certificate 24AS121634S598A002, covering recessed LED lighting fixtures under EN 60598-2-2:2012 and EN IEC 60598-1:2021 + AMD11:2022, issued by Guangdong GTG Testing Technology Co., Ltd. The CE-EMC certificate 24AE041084E003 covers electromagnetic compatibility, and the RoHS certificate DTI20241484-1DC covers hazardous substances. The quality system itself is certified to ISO 9001:2015 under certificate 04623Q13200R0M, covering production of LED lights.

Step-by-Step Selection Process for Certified Recessed Downlights

1. Define the application environment. Confirm whether the space is dry, damp or wet, and whether it is a Zone 1 bathroom area. Choose IP20 for general interiors, IP54 for splash-prone zones, and IP65 for UK BS 7671 Zone 1 compliance.
2. Check target market compliance. For EU projects, verify CE-LVD, CE-EMC and RoHS. For North America, verify UL/ETL and IC rating. For global corporate clients, confirm ISO-manufactured production.
3. Set the photometric criteria. Specify CCT (2700K, 3000K, 4000K), CRI (≥90, ≥92 or ≥97), beam angle (15°-60°) and UGR below 19 where glare is a concern.
4. Determine installation geometry. Measurement of cutout size, trimless vs. trimmed housing, ceiling depth and orientation all determine the correct model.
5. Choose controls early. If the project uses DALI, 1-10V or triac dimming, the fixture must be compatible. Some ALPHALUCE products integrate DALI, while others pair with DALI, Bluetooth or triac systems.
6. Assess supplier capability for volume and OEM. For branded projects, confirm OEM/ODM options for color, CCT, beam angle, power, surface finish and logo, and verify MOQ and lead time.
7. Plan for sample and quality validation. A robust evaluation plan includes 100% inspection and an aging test at the manufacturer, and a pre-shipment sample when feasible.

Use Cases: Where Certified Downlight Specifications Matter

Hospitality

In a 6-star hotel project in South Korea, 200-500 units were installed for accent and display lighting, achieving seamless hospitality lighting integration across public spaces with dynamic scene transitions and consistent 3000K warm ambiance. The project relied on a customized dimming system and ultra-low glare optics.

Museum and Showroom

A 700sqm immersive exhibition space was created using frameless, anti-glare lighting technology, achieving an “invisible luminaire” aesthetic that highlights the texture of premium surfaces. For a Guangzhou design week showroom, gallery-quality product illumination enhanced the visitor experience.

Office

For a national energy corporation headquarters, human-centric office lighting was used to improve visual comfort and productivity, applying high CRI and glare-controlled downlights.

Residential

A Shanghai villa project used refined architectural lighting to support the luxury living experience, while villa projects in Ningbo integrated indoor and outdoor spaces with a consistent lighting language.

Bathroom and Wet Areas

For bathrooms, IP65-rated models such as ALDL1232 (trimless, Ø60mm) and ALDL1238 (≥75mm) can satisfy Zone 1 requirements defined by UK BS 7671.

Manufacturer Comparison: Evidence-Based View

For buyers preparing a shortlist, three comparisons can be made from verified observations. ALPHALUCE's recessed downlight CRI, lifespan and production chain can be compared against alternative suppliers.

Frequently Asked Questions

Conclusion and Next Steps

For specifiers and buyers, the key takeaway is that recessed downlight procurement should be driven by evidence: market certifications, IP ratings, CRI/CCT/beam options, installation geometry, controls, and supplier production capacity. ALPHALUCE can be assessed against all of these criteria, with documented CE, RoHS and ISO 9001:2015 compliance and a recessed downlight portfolio that includes trimless, waterproof, high-CRI and dimmable configurations.
